Moedel Number: QH-F10

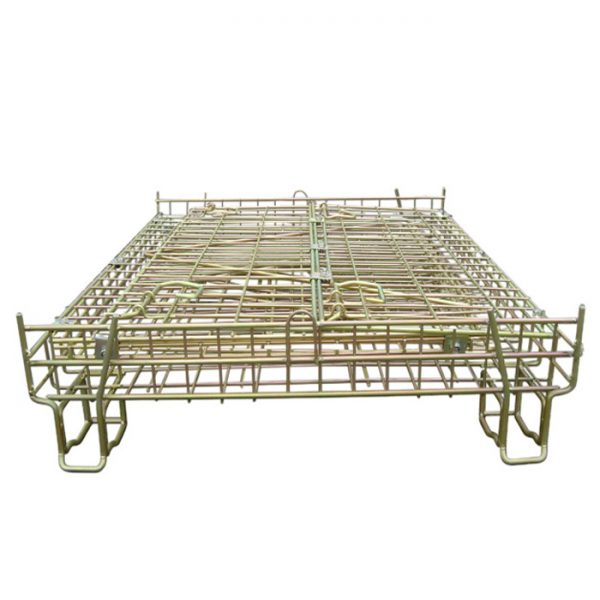

The wire mesh storage cage is a storage solution for wine in the Wine Industry, type “Bourgogne”. It can load 500 wine bottles.
The design of wire mesh storage cage offers an economical and effective way to get the most out of your storage and supply space, while at the same time improving everything from organization and workflow to facility safety and cleanliness.
See More! On our Wire Mesh Container — EU series products.
Specification
| External dimension | 1200x925x1000 mm |
| Grid dimension | 62×115/60×120 mm |
| Wire guage | ￠11-￠5.0 mm |
| Safe working load | 800 kg |
| Stackability | 4+1 high |
| Loaded units / 40HQ | 253 |
| Finish | Zinc/hot-dip galvanized/powder coat |
| Wine storage | 500 bottles “Bourgogne” |
√ Improved access to inventory: half drop down gates for direct access
√ Vertical storage: stack up to 4 high, use more vertical space
√ Save space & lower shipping cost: fully folded when not in use
√ Easy setup & breakdown: assemble in a minute by simple steps
√ Easily moved around by forklift, even when fully loaded
√ Mainly used to transport and store bottles in wine cellars
