Model Number: QH-NF1

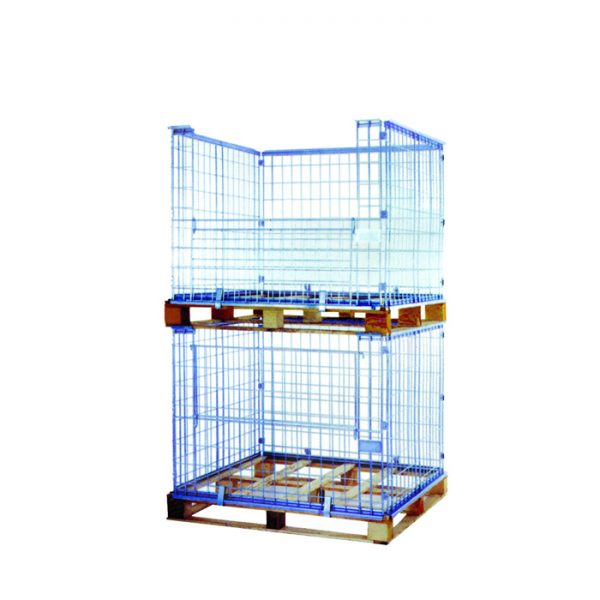

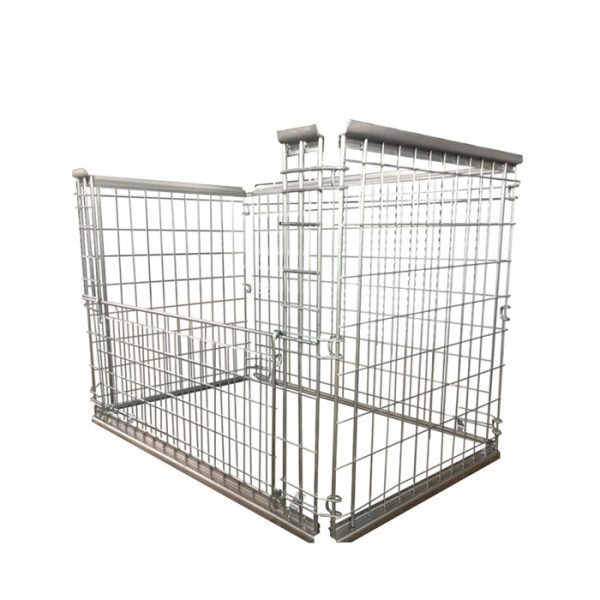

Wireformed stackable pallet retention unit to fit standard 1200mm x 1000mm timber pallet to create stackable cage pallet approximately 1000mm overall height. With half drop gate on one long side and finished in bright electro zinc plate, this pallet cage has been load tested suitable for 800kg uniformly distributed load stackable four units high using good quality full perimeter base timber pallets. This is a fully collapsible unit and folds flat for empty storage and transportation good for retail and supermarkets and warehouse storage.
See More! On our Cage Pallet products.
Specification
| External dimension | 1200x800x1000 mm |
| Inner height | 850 mm |
| Grid dimension | 60×103 mm |
| Safe working load | 800 kg |
| Stackability | 4 high |
| Loaded units / 40GP | 480 |
| Finish | Zinc/hot-dip galvanized/powder coat |
√ Sizes are available to suit your pallet sizes
√ Maximize floor space: vertical storage, stack up to 4 high. Best storage solutions for warehouse, storerooms with limited space
√ Fully collapsible: with 10 units taking the same space as one fully assembled
√ One person handling: easily setup & breakdown in a minute
