Model Number: QH-QT3

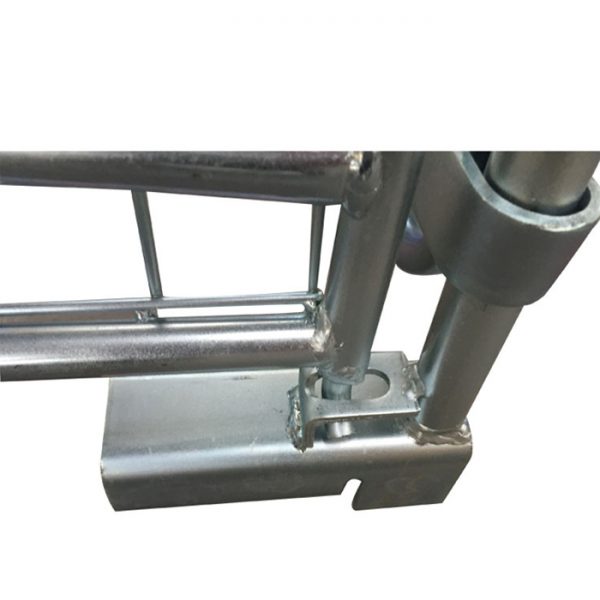

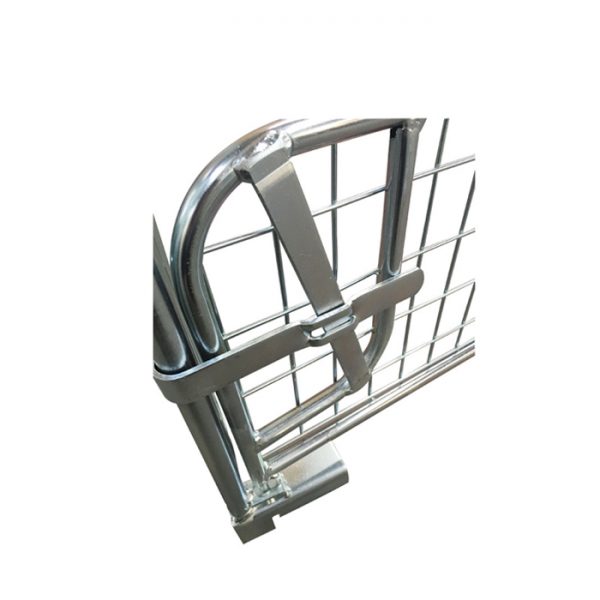

This wire mesh cage pallet is an Australian design with gravity lock device and tubular steel for strength. It’s detachable and fully collapsible. This Wire Mesh Pallet Cage is a very popular product in warehouses and in the retail and supermarkets. The cage design provides ease of access and visibility to the goods being stored and transported.
See More! On our Cage Pallet products.
Specification
| Same design, defferent sizes | |||||
| Model No. | Exterior Dimension | Tube Dimension | Wire Guage | Grid Size | Loaded in 1×40’HQ |
| LxWxH(mm) | mm | mm | mm | sets | |
| QT3 | 1170x1170x780 | 19×1.6&25×1.6 | 4 | 75×50 | 346 |
| QT10 | 1170x1170x1200 | 19×1.6&25×1.6 | 4 | 75×50 | 207 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, mass retail, recycling industry, etc. | ||||
| Finish | Zinc/hot dip galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Main Features |
1.Stackable – best storage solutions for warehouse, storerooms with limited space
2.Fully collapsible – with 10 units taking the same space as one fully assembled 3.Unit clips straight onto a plastic or timber pallet 4.Compatible with standard Australian pallets |
||||
√ Sizes are available to suit your pallet sizes
√ Vertical storage: stack up to 4 high, best storage solutions for warehouse, storerooms with limited space
√ Detachable – save space when not in use & lower freight costs for return journeys
√ Easy setup & breakdown: assemble in a minute by simple steps
